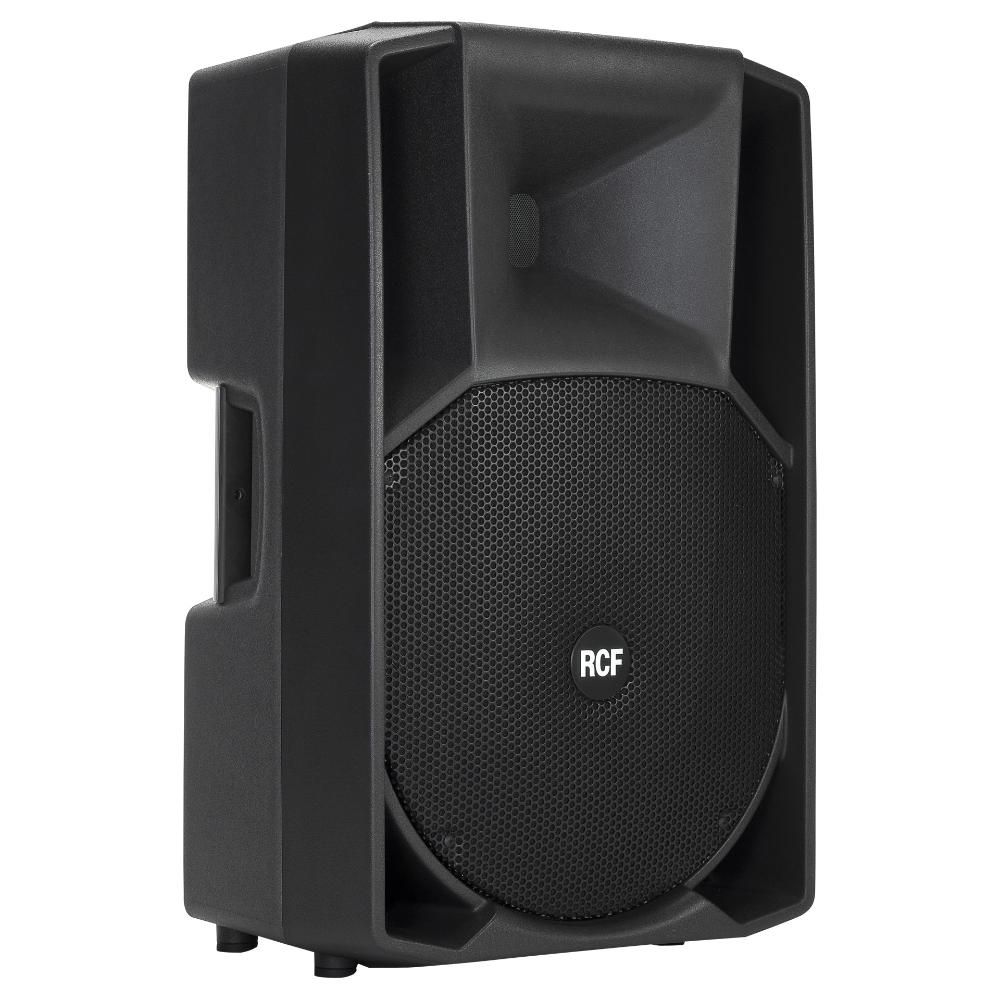

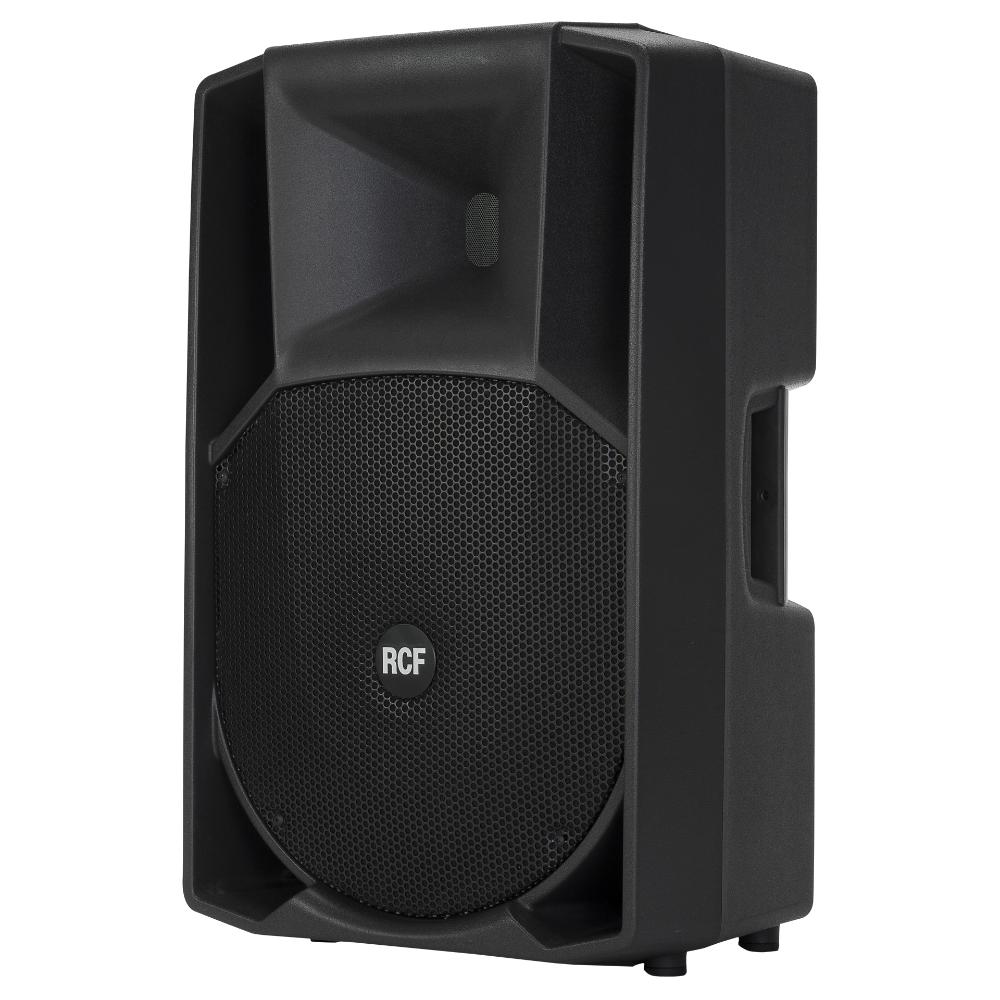

ART 725 MK4 is a passive two-way system with an accurate acoustic design for club installations and live music. Thanks to the high-quality compression driver with a 3” voice coil and the 15” woofer, the ART 725 MK4 delivers clear high frequencies, punchy bass, and full and precise mid frequencies. The new aluminium rear panel is equipped with Speakon in/out connectors.

Features

• 1.4″ compression driver with 3″ voice coil
• 15″ woofer, high power, 3.5″ voice coil
• 133 dB max spl
• Input Power Rating: 650 W AES

Applications

• Fixed Installations
• Clubs
• Live Music
• Stage monitoring
• Frontfill and sidefill

Specification

Acoustical specifications

• FREQUENCY RESPONSE (-10DB): 55 Hz ÷ 20000 Hz
• MAX SPL @ 1M: 133 dB
• HORIZONTAL COVERAGE ANGLE: 90°
• VERTICAL COVERAGE ANGLE: 60°
• SYSTEM SENSITIVITY: 99 dB

Power section

• CROSSOVER FREQUENCIES: 1400

Transducers

• COMPRESSION DRIVER: 1.4” neo, 3.0” v.c
• NOMINAL IMPEDANCE (OHM): 8 ohm
• INPUT POWER RATING: 110 W AES, 220 W PEAK
• SENSITIVITY (DB, 1W @ 1M): 109 dB, 1W @ 1m
• WOOFER: 15” neo, 3.5” v.c
• NOMINAL IMPEDANCE (OHM): 8 ohm
• INPUT POWER RATING: 650 W AES, 1300 W PEAK
• SENSITIVITY (DB, 1W @ 1M): 98 dB, 1W @ 1m

Input/Output section

• INPUT CONNECTORS: Speakon
• OUTPUT CONNECTORS: Speakon

Standard compliance

• CE MARKING: Yes

Physical specifications

• CABINET/CASE MATERIAL: PP Composite
• HARDWARE: 2 x M10
• HANDLES: 1 Top, 2 Side
• POLE MOUNT/CAP: Yes
• GRILLE: Steel
• COLOR: Black

Size

• HEIGHT: 708 mm / 27.87 inches
• WIDTH: 437 mm / 17.2 inches
• DEPTH: 389 mm / 15.31 inches
• WEIGHT: 20.5 kg / 45.19 lbs

Shipping informations

• PACKAGE HEIGHT: 725 mm / 28.54 inches
• PACKAGE WIDTH: 550 mm / 21.65 inches
• PACKAGE DEPTH: 505 mm / 19.88 inches
• PACKAGE WEIGHT: 23.7 kg / 52.25 lbs
